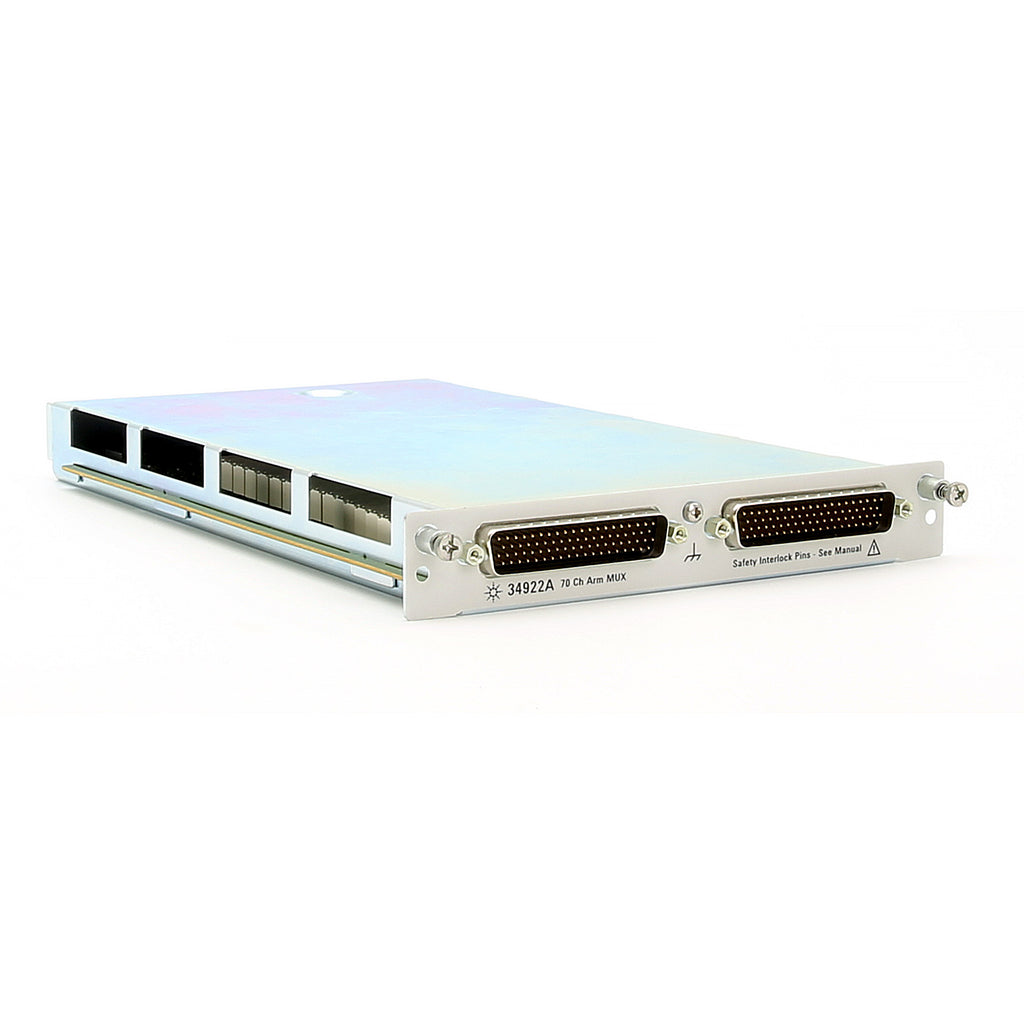

Keysight / Agilent 34922A 70-Channel Armature Multiplexer
The Agilent 34922A module for the 34980A Multifunction Switch/Measure Unit offers high density multiplexer switching in a compact size. It combines dense, multi-function switching with 100 channel/second scan rates to address a broad spectrum of data acquisition applications.
Current measurements can be accomplished with user provided shunt resistors. Standard 78-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions.
The 34922T is a terminal block for the 34922A 70-channel multiplexer. This terminal block is used for discrete wiring. It supports up to 20 AWG wire size typical for <100 connections or 24 AWG for >100 connections. The 34922T is a detachable terminal block with screw-type connections that provides a flexible method for connecting external wiring.
Features:
- 70 2-wire channels channels
- Mixed 2- or 4-wire configurations
- 300 V, 1A switch; 2 A carry current
- 100 ch/s scanning
- Latching armature relays, with relay counter
- Optional Accessories: 34922T Terminal Block
Please see Datasheet for complete details and specifications.
