Keysight / Agilent 34937A 32-Channel Form C/Form A General Purpose Switch

Keysight / Agilent 34937A 32-Channel Form C/Form A General Purpose Switch

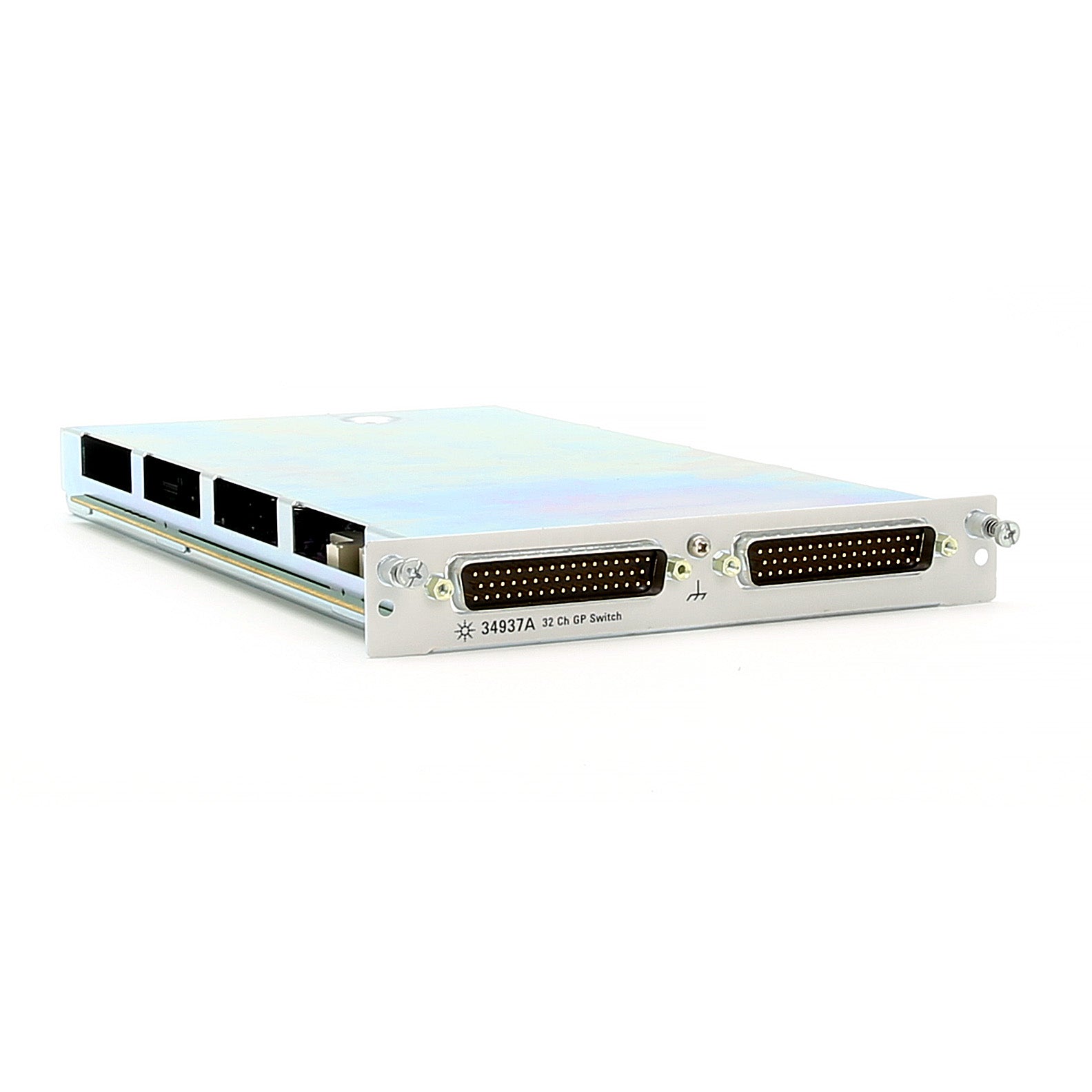

The Agilent 34937A is a general-purpose switch module for the 34980A Multifunction Switch/Measure Unit. It has 28 independent single-pole, double-throw (SPDT) 1A relays and 4 single-pole, single-throw (Form A) 5A relays. This module is used to cycle power to products under test, control indicator and status lights, and to actuate external power relays and solenoids. The Form C channels are 300V, 1A contacts and can handle up to 60W, and the Form A channels are 30VDC/250VAC, 5A contacts and can handle up to 150W. Standard 50-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions.

The 34937T is a terminal block for the 34937A and L4437A GP Switch. This terminal block is used for discrete wiring. It supports up to 20 AWG wire size typical for &lt:100 connections or 24 AWG for >100 connections. The 34937T is a detachable terminal block with screw-type connections that provides a flexible method for connecting external wiring.

Features:

• 28 Form C channels up to 1A, 60W
• 4 Form A channels up to 5A, 150W
• Latching armature relays, with relay counter
• Temperature sensor for overheating conditions
• Simultaneous channel switching
• Optional Accessories: 34937T Terminal Block

Please see Datasheet for complete details and specifications.
