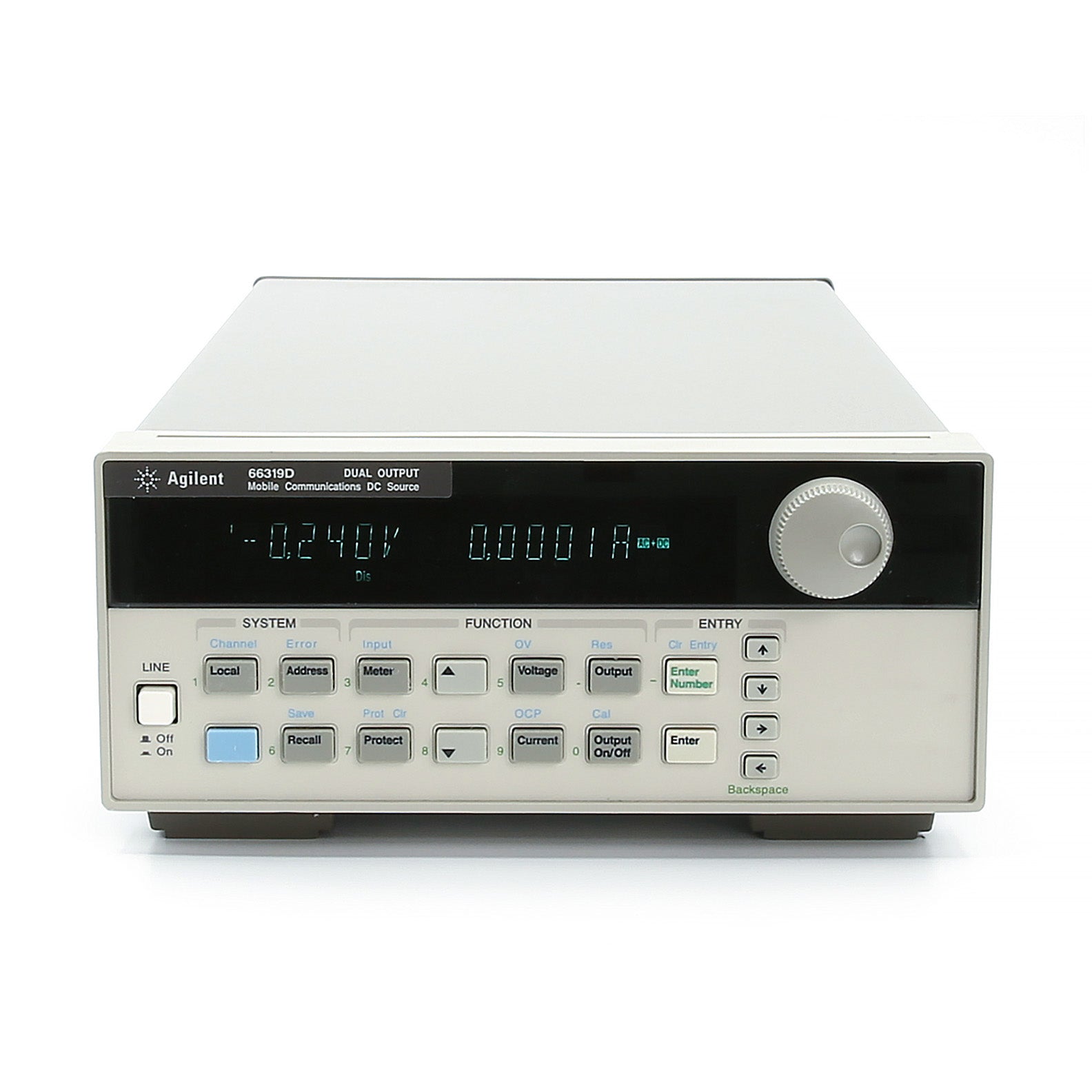

Keysight / Agilent 66319D Dual Mobile Communications DC Source 0-15Vdc, 0-3A w/Battery Emulation, DVM

Keysight / Agilent 66319D Dual Mobile Communications DC Source 0-15Vdc, 0-3A w/Battery Emulation, DVM

The 66319D Dual Mobile Communication DC Source offers several features ideal for testing wireless and battery powered devices. Excellent voltage transient response ensures maximum test-system throughput by minimizing device shutdowns due to significant voltage drops in the test wiring. Built-in advanced measurement system to accurately measure battery current drains when the device operates in different modes and a feature that enables cellular telephone manufacturers to detect permanently and intermittently open-sense wire connections.

The 66319D dual output mobile communications dc source provides two outputs for testing both the main battery power and the battery charger circuitry, allowing customers to test phones and chargers with the same equipment. This feature helps save on rack space (2 outputs in a 1/2 rack box) and eliminates the need for two separate power supplies. The 66319D dc source provides all of the capabilities of the 66319B with the addition of a built-in digital voltmeter.

For R&D engineers, you can characterize current out of the battery and make tradeoffs in design that impact the current drain and battery life (by providing data logging - up to 1000 hours, CCDF statistical analysis, and waveform capture), when the 66319D is used with 14565B Software.

Features:

• Output ratings
  • Voltage: 0 to 15 V
  • Current: 0 to 3 A
  • Peak Current for up to 7 ms: 5 A
• Programming accuracy at 25°C ±5°C (% of setting plus fixed)
  • Voltage: 0.05% + 10 mV
  • +Current: 0.05% + 1.33 mA
• DC readback accuracy
  • Voltage: 0.03% + 5 mV
  • Current (-3 A to + 5 A): 0.2% + 0.5 mA
  • Current (-1 A to + 1 A): 0.1% + 0.2mA
  • Current (-20 mA to + 20 mA): 0.1% + 2.5 µA
• Transient response
  • 40 mV drop, <20 µs transient response time
• Weight: 9.7 kg (20 lb)
• Shipping Weight: 11.1 kg (24.5 lb)

Please see Datasheet for complete details and specifications.
