Description

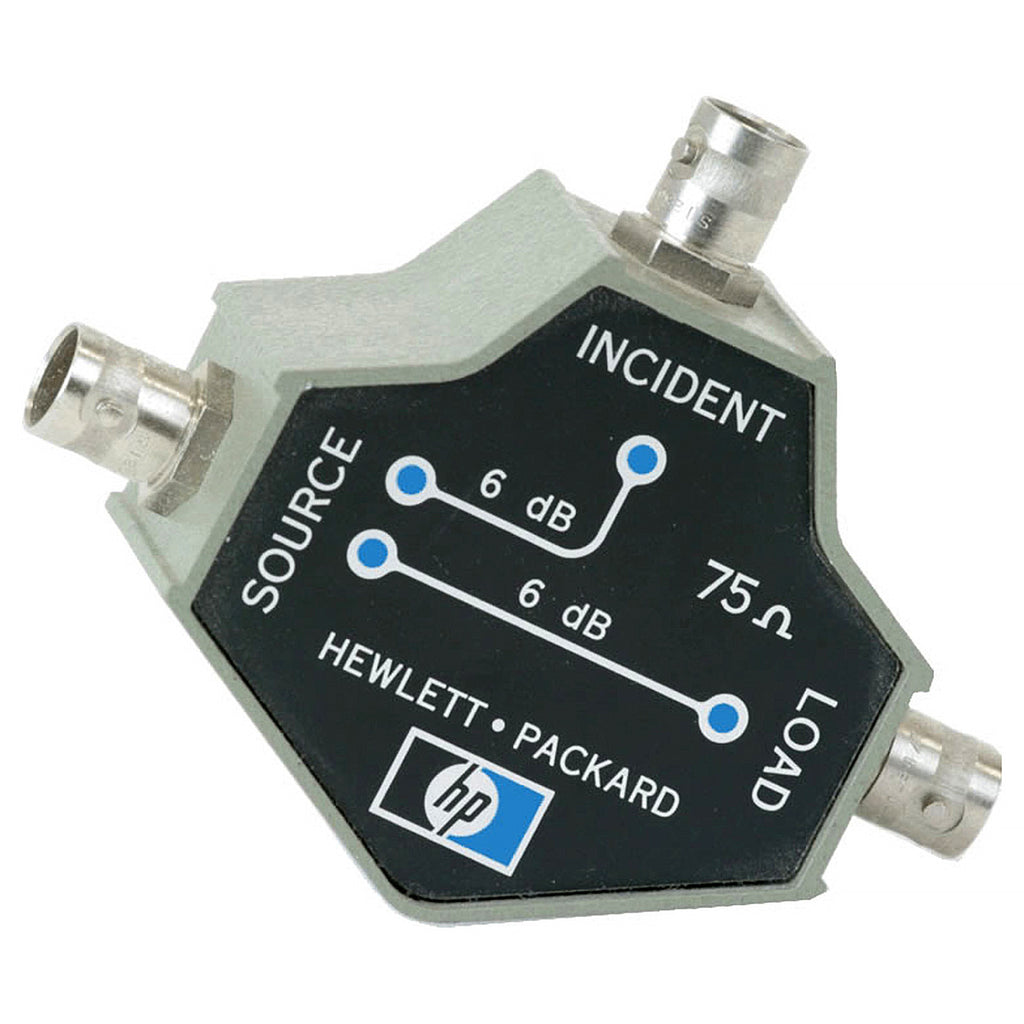

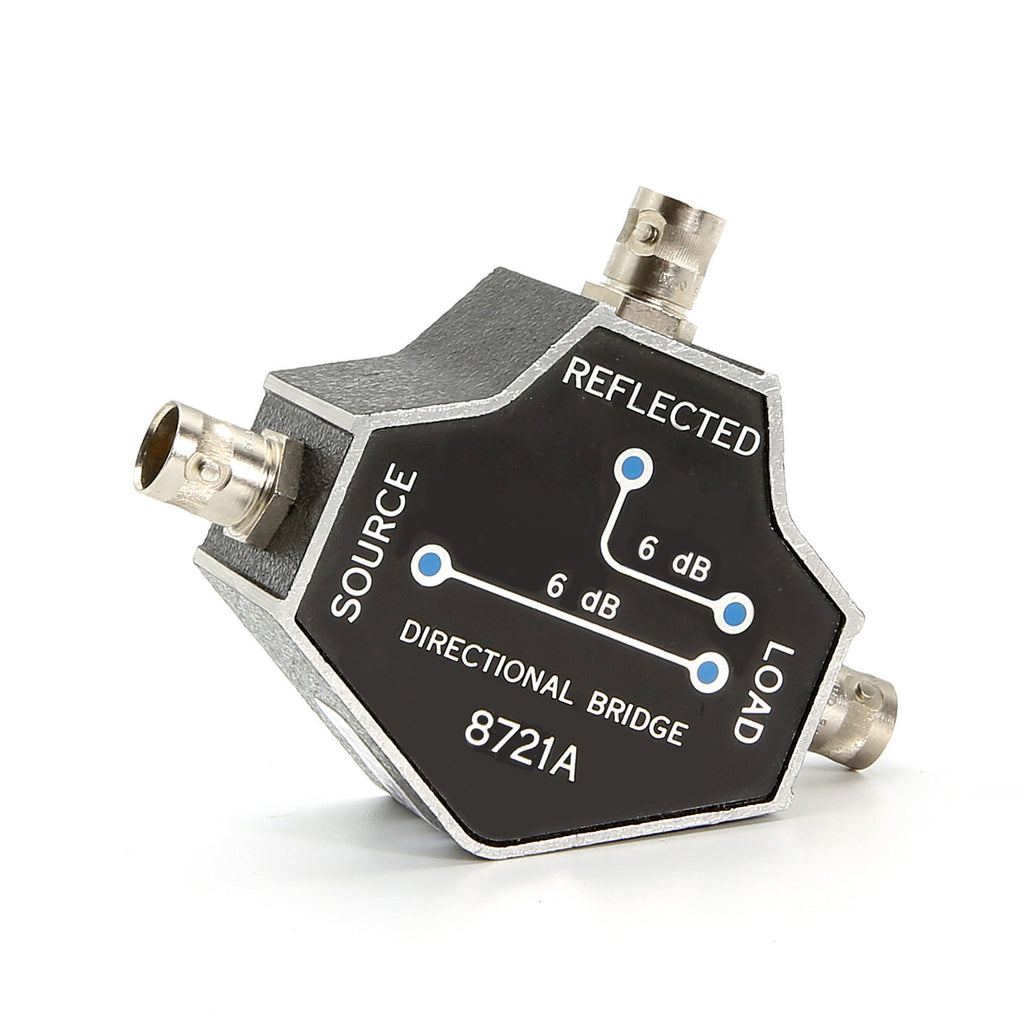

Keysight / Agilent 8721A Directional Bridge, 100 kHz to 110 MHz
The 8721A directional bridge is used in return loss measurements made with a swept source, such as a tracking generator and spectrum analyzer.
Available in either 50 Ω or 75 Ω (option 008)
Features:
- Frequency Range: 100 kHz to 100 MHz
- Directivity: >40 dB
- Insertion loss: 6 dB
- Input power (maximum): +20 dBm
- Input / Test Port connectors: BNC(f)
- Shipping weight: 2 lbs.
Please see Datasheet for complete details and specifications.
