Description

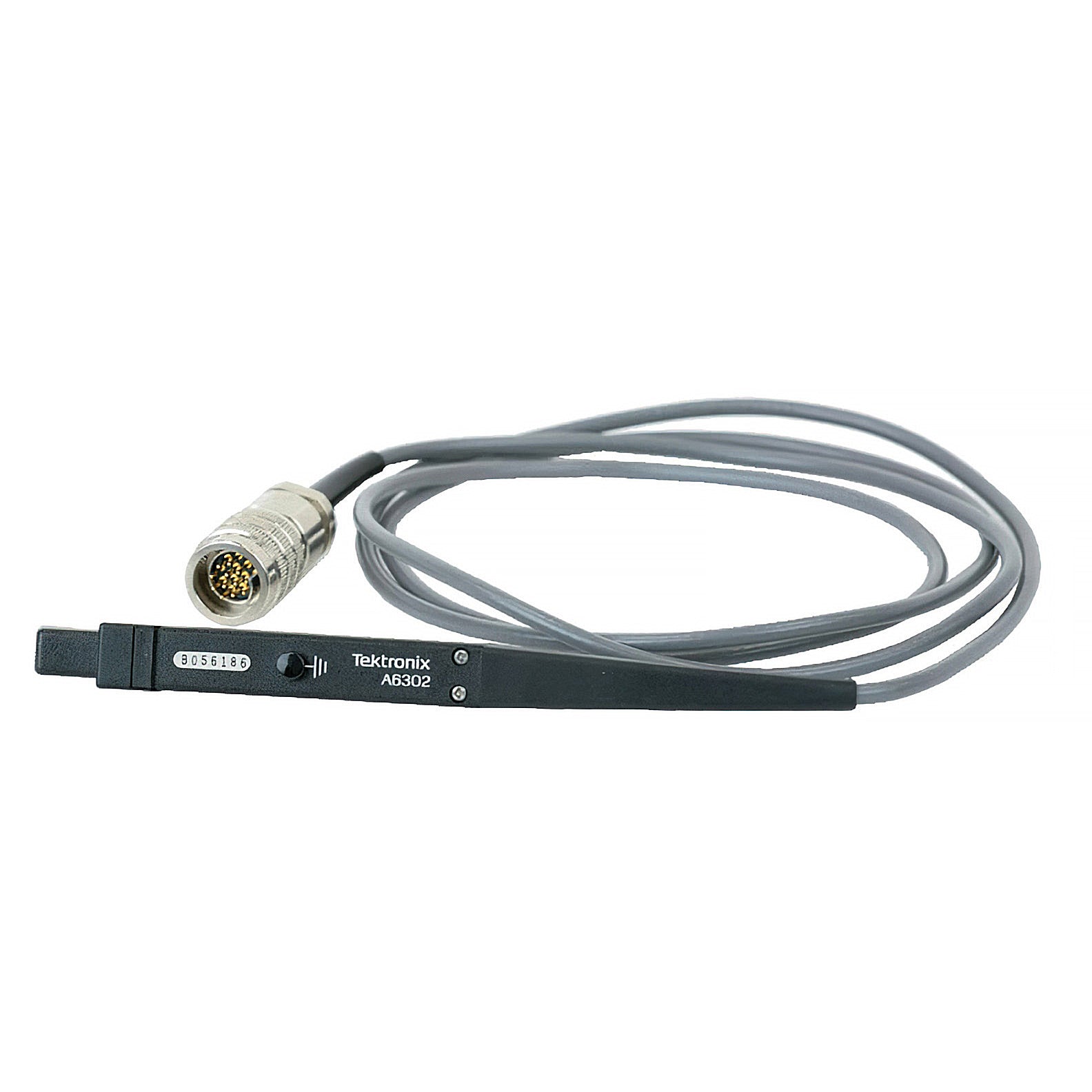

Tektronix A6302 Current Probe, AC/DC, 20 A, 50 MHz
The A6302 current probe is useful in making SCR, power supply, industrial control, and motor start-up current measurements. It requires an AM503 series current probe amplifier for operation.
Features:
- AC/DC Current measurements
- Input current: 20 A continuous, 100 A peak
- Bandwidth: dc to 50 MHz
- Clips on conductors up to 0.15 inch diameter
- Cable length: 2 m
- Shipping weight: 3 lb
Please see Datasheet for complete details and specifications.
Datasheets
A6302Payment & Security
