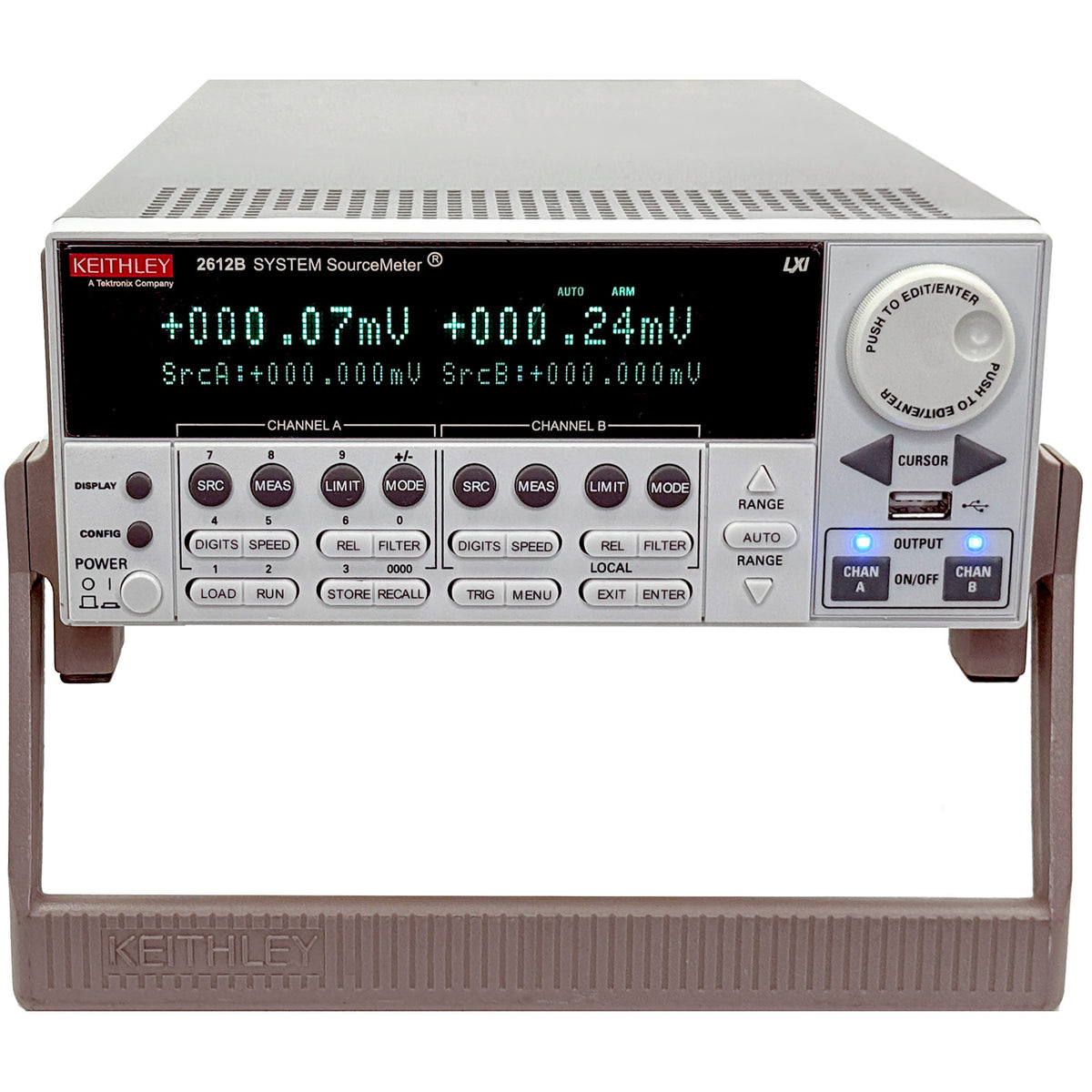

Keithley 2612B Dual-Channel System SourceMeter, SMU Instrument, 200 V, 10 A Pulse, Series 2600B

Keithley 2612B Dual-Channel System SourceMeter, SMU Instrument, 200 V, 10 A Pulse, Series 2600B

The Keithley 2612B dual-channel source meter combines the capabilities of a precision power supply, a true current source, a 6-1/2-digit DMM, an arbitrary waveform generator, a pulse generator, and an electronic load into one tightly integrated instrument. The result is a powerful solution that significantly boosts productivity in applications ranging from bench-top I-V characterization through highly automated production test.

Built-in web-based software enables I-V testing through any computer from anywhere in the world. Or use your Android device to perform plug-and-play I-V testing with fingertip control using the Keithley IVy application. For automated system applications, the Series 2600B's Test Script Processor (TSP®) runs complete test programs directly within the instrument to deliver industry-best throughput. In larger, multi-channel applications, Keithley's TSP-Link® Technology works together with TSP Technology to enable high-speed, SMU-per-pin parallel testing. Because Series 2600B SourceMeter SMU Instruments have fully isolated channels that do not require a mainframe, they can be easily reconfigured and re-deployed as your test applications evolve.

Features:

• Dual Channel
• Max Current Source/Measure Range: 10 A (1.5 A DC, 10 A Pulse)
• Max Voltage Source/Measure Range: 200 V
• Measurement Resolution: 100 fA / 100 nV
• Max. DC Power per Channel: 30.3 W
• 0.012% basic measure accuracy with 6½-digit resolution
• Built-in web browser-based software enables remote control through any browser, on any computer, from anywhere in the world
• Compatibility with the Keithley IV mobile app enables true plug-and-play
• I/V characterization and test through any Android device
• TSP (Test Script Processing) technology embeds complete test programs inside the instrument for best-in-class system-level throughput
• TSP-Link expansion technology for multi-channel parallel test without a mainframe
• Software emulation for Keithley’s 2400 SourceMeter SMU Instrument

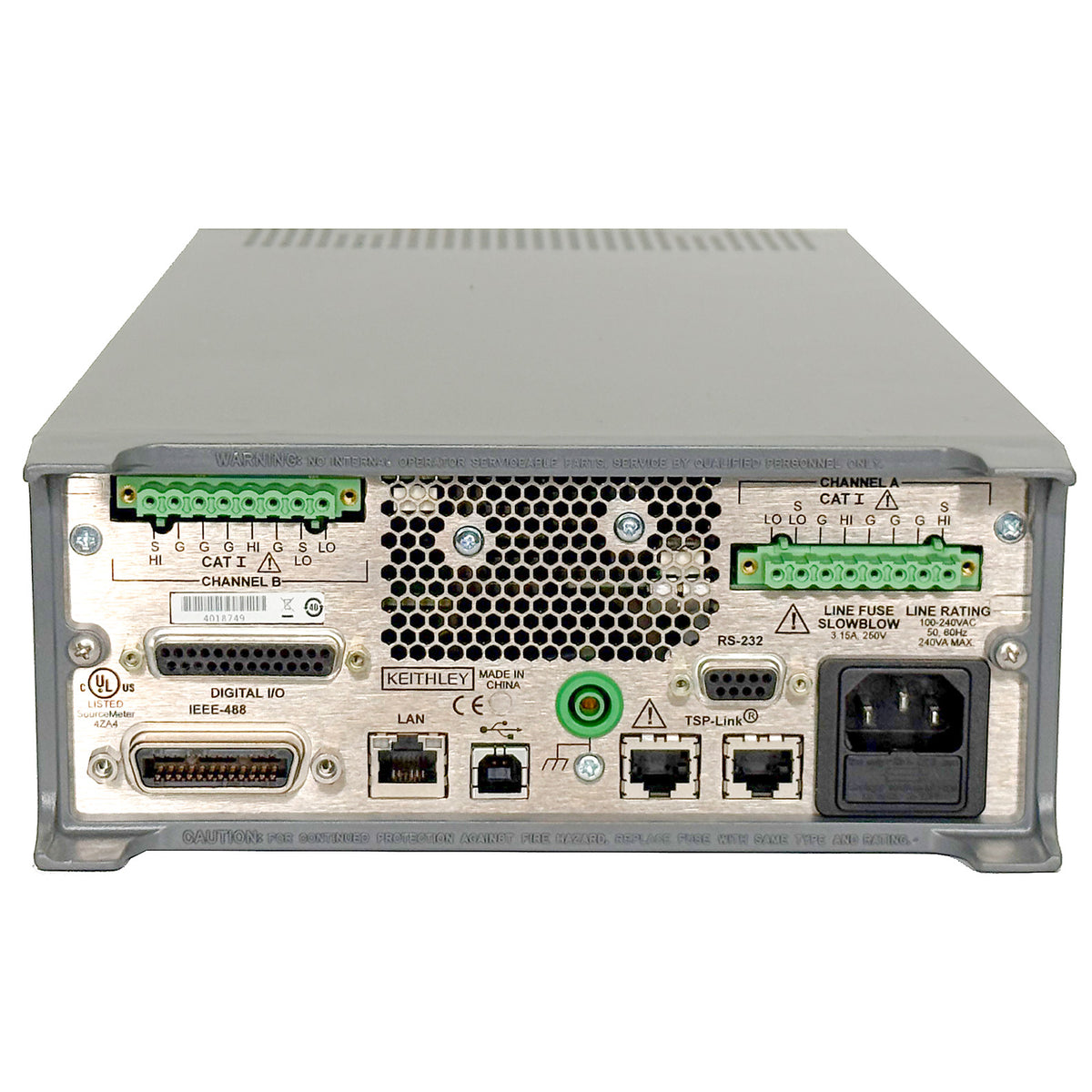

• USB 2.0, LXI-C, GPIB, RS-232, and digital I/O interfaces
• Built-in web browser-based software enables remote control through any browser, on any computer, from anywhere in the world
• Operating Voltage: 100 Vac to 240 Vac, 50 Hz or 60 Hz (autosensing),
• Dimensions: 89 mm (H) x 213 mm (W) x 460 mm (D), Weight: 5.50 kg (12.0 lbs).

Please see the Datasheet for complete details and specifications.
