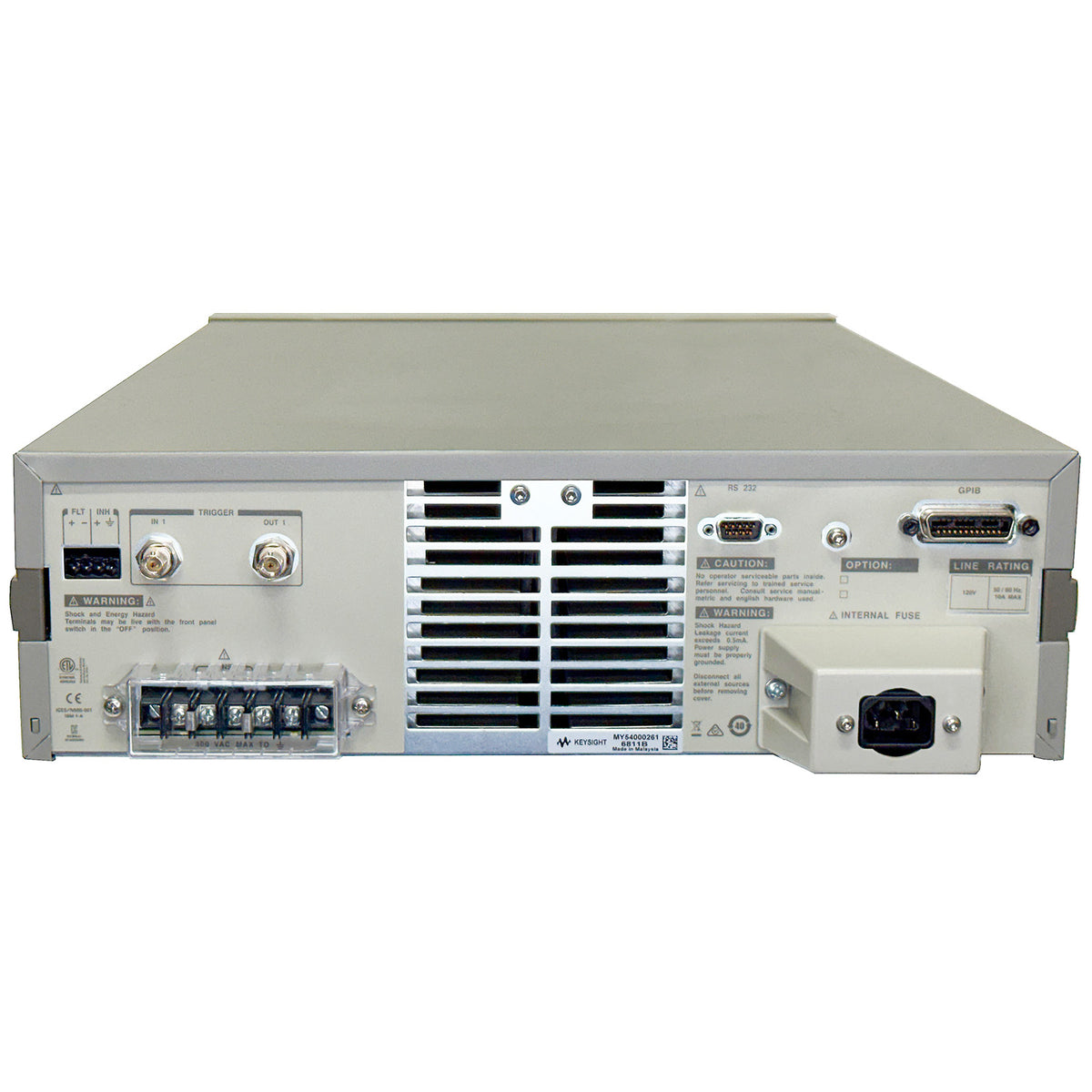

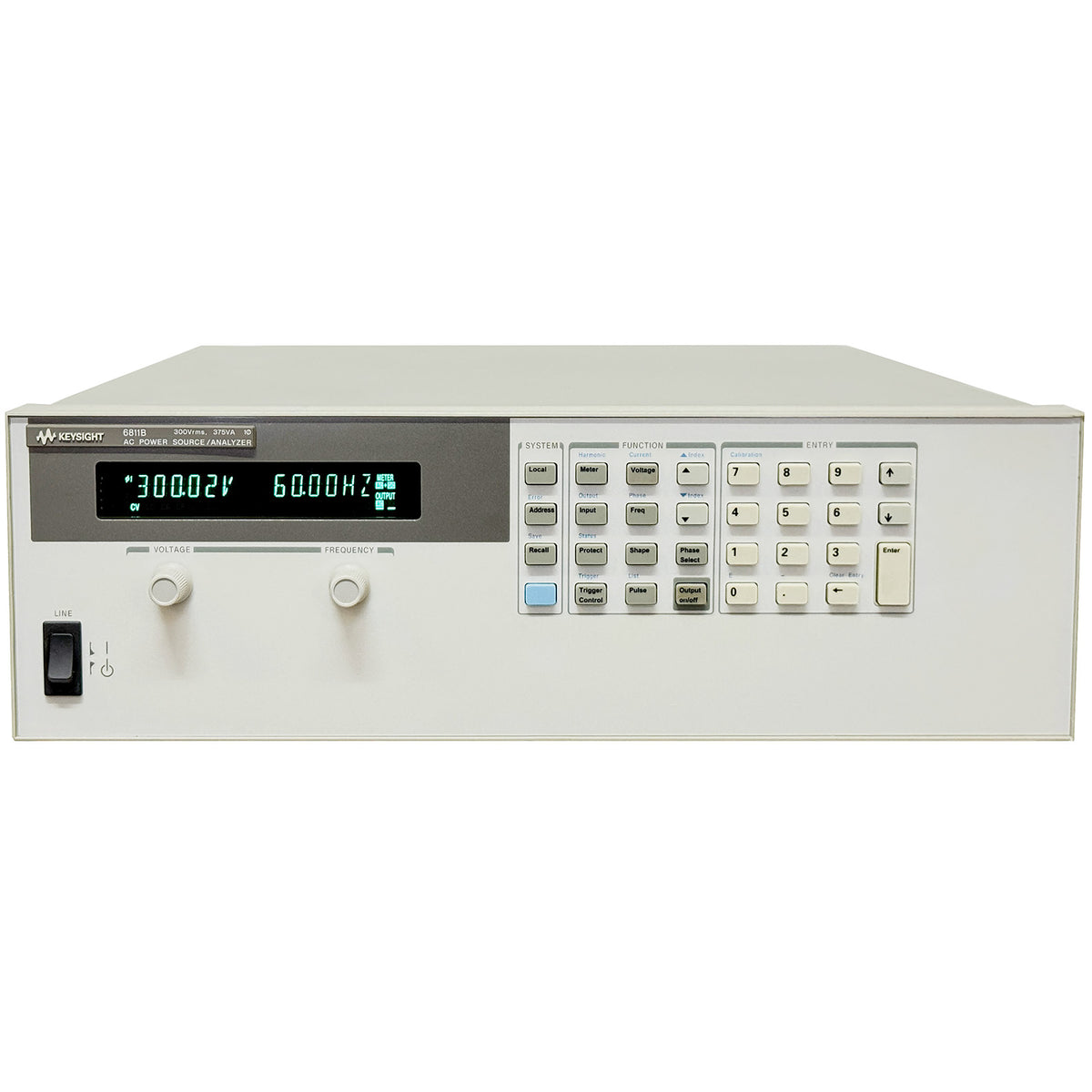

Keysight / Agilent 6811B AC Power Source/Analyzer, 300 Vac, 3.25 A, 375 VA

Keysight / Agilent 6811B AC Power Source/Analyzer, 300 Vac, 3.25 A, 375 VA

The 6811B AC Power Source / Power Analyzer is for applications that require precise, accurate measurements and efficient analysis of AC power. The 6811B has generation, measurement, and AC power analysis capabilities. This Keysight AC power source is ideal for power-supply testing, CE-mark testing for AC mains, UPS testing, and much more.

Since your product will operate in the real world of unpredictable AC power, you need to design and verify its proper operation across a wide range of AC input conditions. Brownouts, dropouts, sags, and other irregularities are not unusual in many communities today. Keysight AC sources have the features needed to easily accomplish this test goal, either in an R&D environment or on the manufacturing test floor. If you plan to sell your products in a worldwide market, you will also need to test them at the line voltages and frequencies that they will eventually operate at. Additional testing is also needed to meet regulatory requirements in some countries.

Keysight AC sources offer a complete solution for AC power testing, helping you to simplify this important task. These instruments combine the features of a power amplifier and an arbitrary waveform generator to give you the ability to do all of the tests that you need. There are many standard pre-programmed waveforms, or you can use the transient generation system to simulate sophisticated and repeatable AC line disturbances. DC power can also be generated, either as a DC offset or as a pure DC signal.

Powerful Built-in Measurement Capabilities
Keysight AC sources offer extensive 16-bit precision measurement capabilities that would normally require multiple complex instruments, including a DMM (digital multimeter), an oscilloscope, a power analyzer, and a harmonic analyzer. The precision measurements include:

• RMS, DC, AC + DC voltage and current
• Peak voltage and current
• Real, apparent, and reactive power
• Harmonic analysis of voltage and current waveforms providing amplitude and phase up to the 50th harmonic
• THD (total harmonic distortion)
• Triggered acquisition of digitized voltage and current

Features:

• Output Power: 375 VA
• RMS Voltage: 300 V
• RMS Current: 3.25 A
• Repetitive and non-repetitive peak current: 40 A
• Crest factor: 12
• Load power factor capability: 0 to 1
• DC Power: 285 W
• DC Voltage: ± 425 VA
• DC Current: 2.5 A
• Output frequency range: DC; 45 Hz to 1 kHz
• Constant voltage ripple and noise (20 kHz to 10 MHz): –60 dB (relative to full scale)
• Line regulation (% of full scale): 0.1%
• Load regulation (% of full scale): 0.5%
• GPIB, RS-232 Interfaces
• AC Input: 104 to 127 Vac (120 Vac nominal), 47 to 63 Hz operation
• Weight: 62 lb; Size (W x H x D): 425.5 mm x 132.6 mm x 574.7 mm (16.75 in x 5.25 in x 22.6 in)

Please see the Datasheet for complete details and specifications.
