Stanford Research SR530 Dual Phase Lock-In Amplifier

Stanford Research MPN: SR530
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Select Model:
Price:
Sale price$1,995.00 USD
Stock:
Available - Please contact our office at 1-800-366-5240 for update.

Description

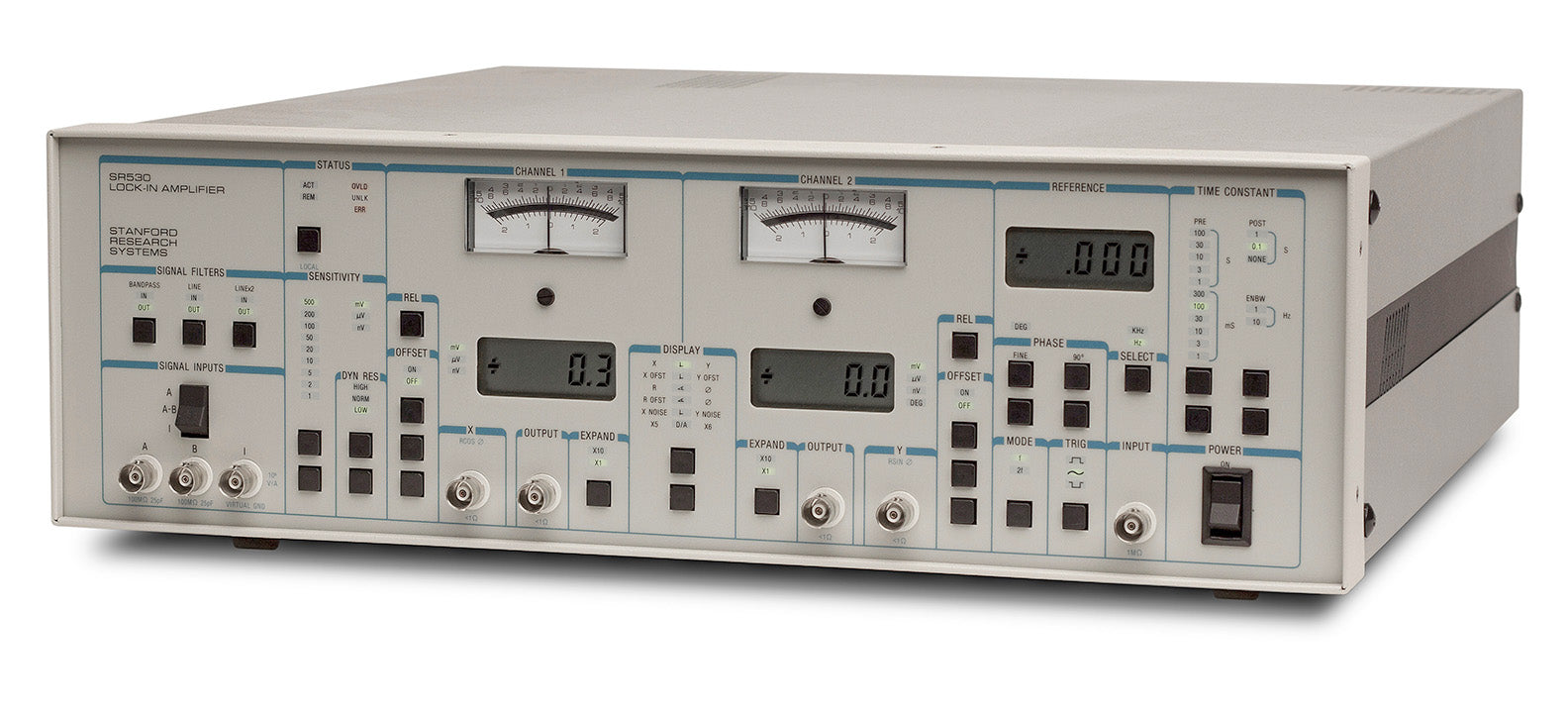

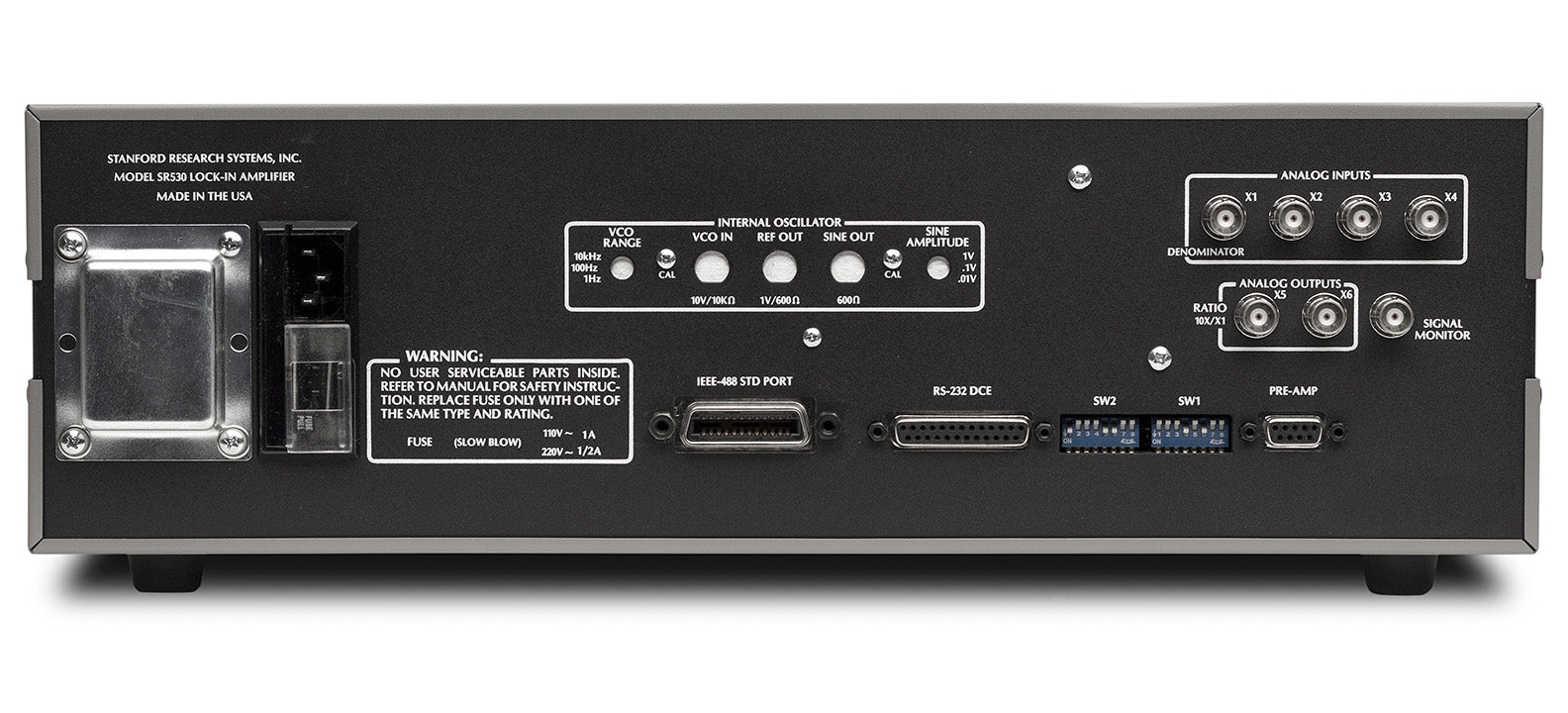

Stanford Research SR530 Dual Phase Lock-In Amplifier

The Stanford Research SR530 is an analog lock-in amplifier which can measure AC signals as small as nanovolts in the presence of much larger noise levels. The Dual Phase SR530 has low-noise voltage and current inputs, high dynamic reserve, two stages of time constants, and an internal oscillator. In addition, THE SR530 comes equipped with a variety of features designed to make it simple to use.

Options

  • Option 01 = GPIB Interface
  • Option 02 = Internal Voltage-controlled Oscillator

Features:

  • Frequency Range: 0.5 Hz to 100 kHz
  • Dual Phase
  • Current and Voltage Inputs
  • Up to 80 dB Dynamic Reserve
  • Internal Reference Oscillator
  • Tracking Band-Pass and Line Filters
  • Four ADC Inputs, Two DAC Outputs
  • RS-232 Interface

Please see Datasheet for complete details and specifications.

Datasheets
